Product Information
|
|  |

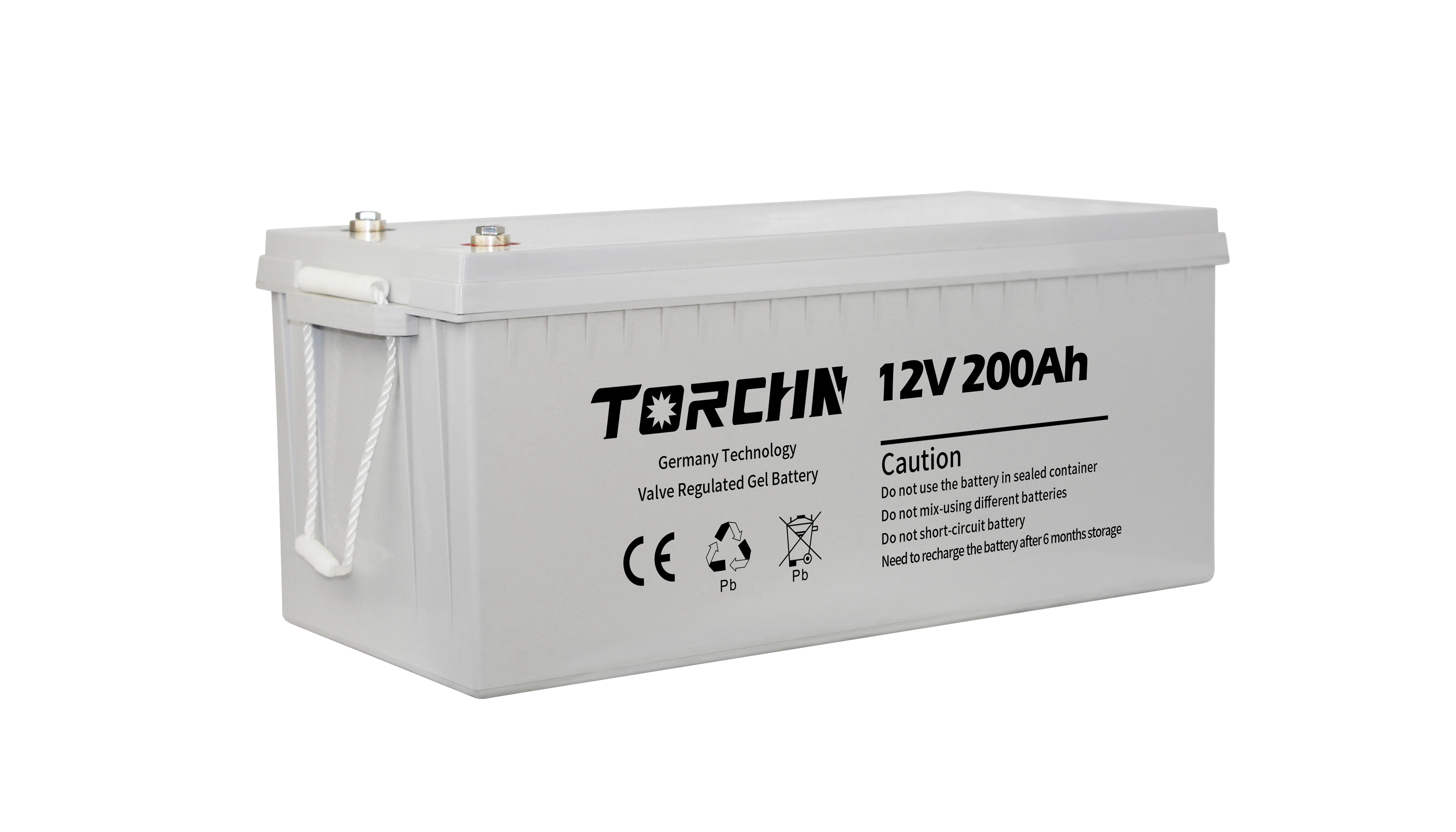

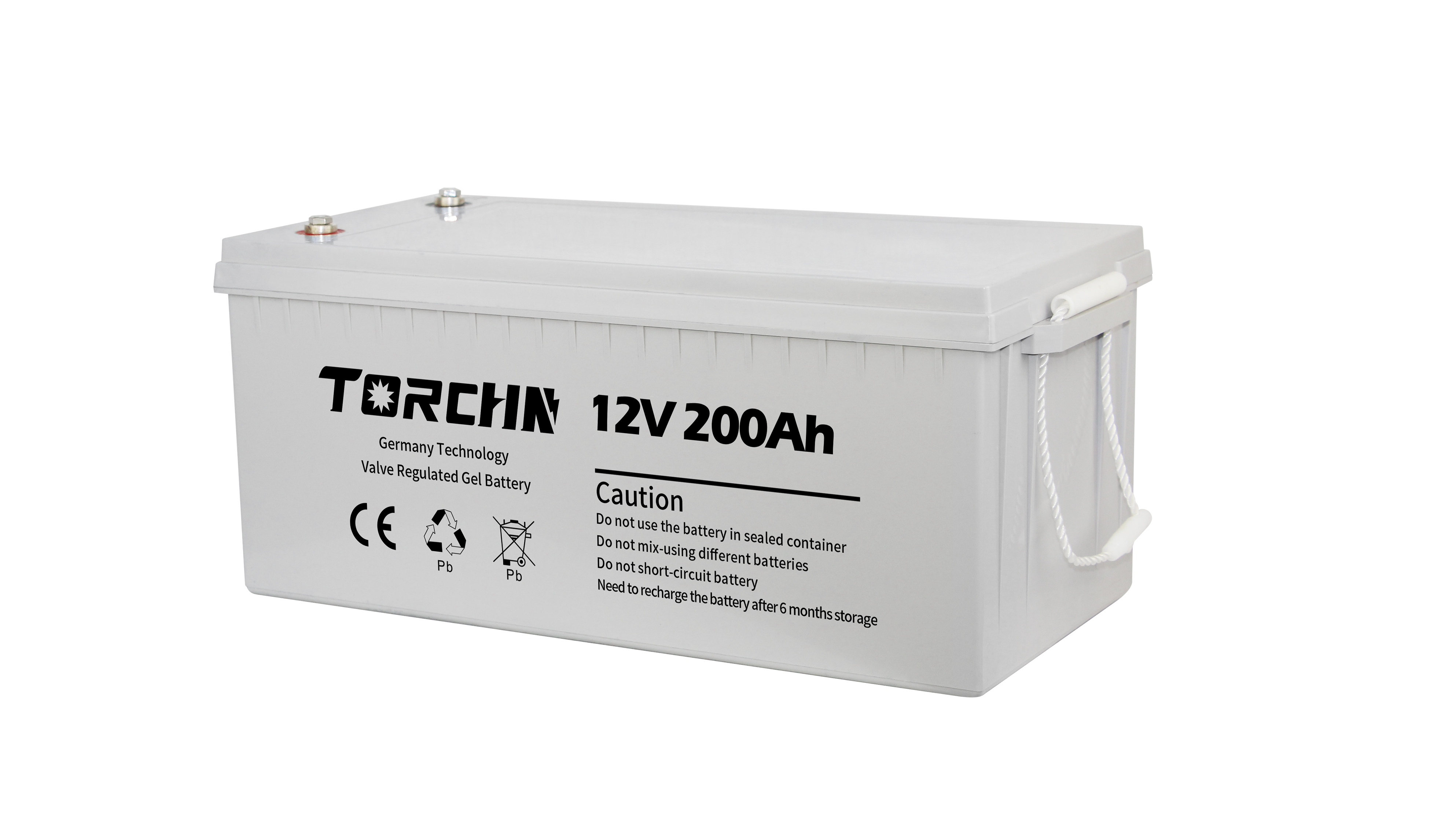

Deep cycle maintenance free gel battery.Our products can be used in UPS,solar street light,solar systems.
 | Product Parameters |
| Factory long life battery gel solar for solar energy system 200ah solar gel batteries | |
| Cell Per Unit | 6 |
| Voltage Per Unit | 12V |
| Capacity | 200AH@10hr-rate to 1.80V per cell @25°c |
| Weight | 54KG |
| Max. Discharge Current | 1000 A (5 sec) |
| Internal Resistance | 3.5 M Omega |
| Operating Temperature Range | Discharge: -40°c~50°c |
| Charge: 0°c~50°c | |
| Storage: -40°c~60°c | |
| Normal Operating | 25°c±5°c |
| Float charging | 13.6 to 14.8 VDC/unit Average at 25°c |
| Recommended Maximum Charging Current | 20 A |
| Equalization | 14.6 to 14.8 VDC/unit Average at 25°c |
| Self Discharge | Batteries can be stored for more than 6 months at 25°c. Self-discharge ratio less than 3% per month at 25°c. Please charge batteries before using. |
| Terminal | Terminal F5/F11 |
| Container Material | A.B.S. UL94-HB, UL94-V0 Optional |
 | Product Specification |
